Angelus® 60L Specifications and Floor Plans
Angelus® 61H/62H Specifications and Floor Plans
Angelus® 80L/81L Specifications and Floor Plans
Angelus® 100L/101L Specifications and Floor Plans
Angelus® 120L/121L Specifications and Floor Plans
Double Seam Defect Chart

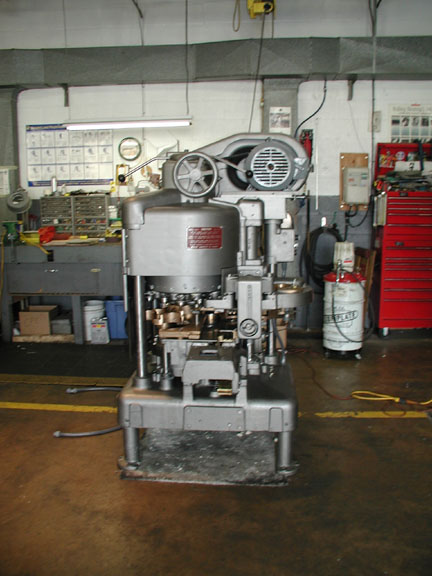

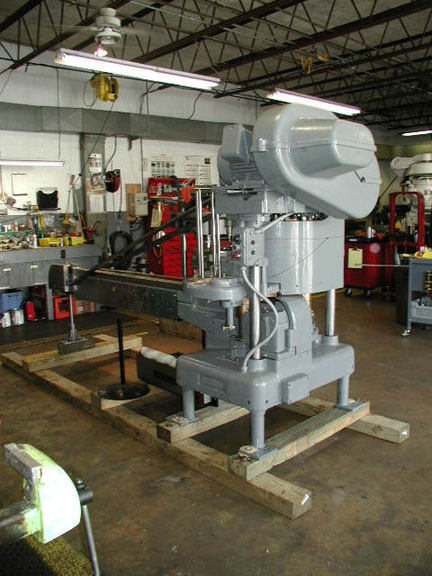

ANGELUS® MODEL 60L
Technical Specifications

Number of Stations

6

Output Speed Range

175-500 CPM

Min/Max Can Diameter

200-404

Min/Max Can Diameter
(optional)

112

Min/Max Can Height
(UCG & Atmos.)

108-712

Min/Max Can Height
(UCG & S.V.)

111-712

Min Can Height ? SV & UCG
(Raised feed line)

107

Max Can Height
(stretch kit)

1300

Transfer Chain Pitch
Can Centers

6.000?

Filler Drive

1 rev/can

Horsepower/Electrical

7.5-10 HP

Electrical Controls

24 Volt DC

Net Weight (approx)

6,150 lbs

Gross Weight (approx)

7,250 lbs

Floor Plan - 60L Can Shop with Worm Can Feed
Floor Plan - 60L Can Shop without Worm Can Feed
Floor Plan - 60L Cannery

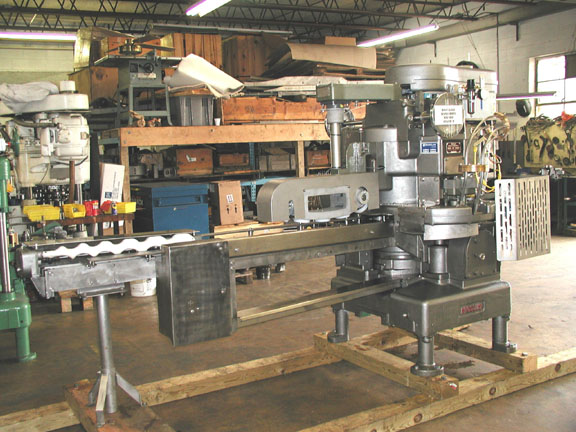

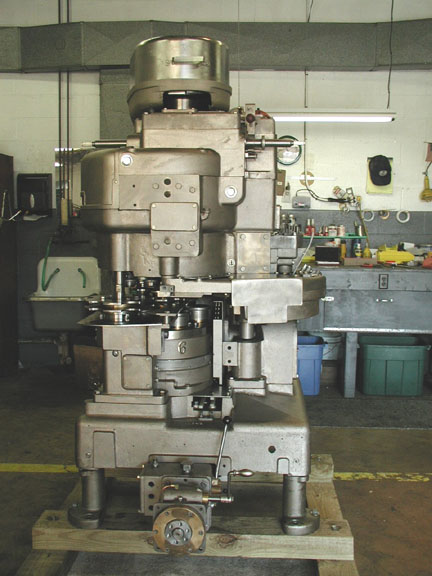

ANGELUS® MODEL 61H/62H (Top)
Technical Specifications

Number of Stations

6

Output Speed Range

225-600 CPM

Output Speed Range
(optional)

225-700 CPM

Min/Max Can Diameter

200-404

Min/Max Can Height
(Atmos. & CM)

110-800

Min/Max Can Height
(UCG & S.V.)

111-800

Min Can Height ? Atmos.
(Raised Feed Line)

104

Min Can Height ?CM
(Raised Feed Line)

105

Min Can Height ? UCG & SV
(Raised Feed Line)

107

Filler Drive

1 rev/can

Horsepower/Electrical

15-20 HP

Electrical Controls

24 Volt DC

Transfer Chain Pitch
Can Centers

5.5000?

Net Weight (approx)

9,200 lbs

Gross Weight (approx)

10,300 lbs





Floor Plan - 61H/62H Can Shop
Floor Plan - 61H/62H Cannery




ANGELUS® MODEL 80L/81L (Top)
Technical Specifications

Number of Stations

8

Output Speed Range

800 CPM

Min/Max Can Diameter

200-404

Min/Max Can Height
(CM & Atmos)

110-800

Min/Max Can Height
(Steam Vacuum)

113-800

Min Can Height - SV
(Raised Feed Line)

107

Min Can Height ? CM & Atmo
(Raised feed line)

105

Transfer Chain Pitch
Can Centers

6.000?

Electrical Controls

24 Volt DC

Filler Drive

1 rev/can

Horsepower/Electrical

7.5-10 HP

Gross Weight (approx)

16,500 lbs

Net Weight (approx)

14,400 lbs









ANGELUS® MODEL 100L/101L (Top)
Technical Specifications

Number of Stations

10

Output Speed Range

1200 CPM

Min/Max Can Diameter

200-401

Min/Max Can Height
(CM & Atmos)

110-800

Min/Max Can Height
(UCG & SV)

113-800

Min Can Height CM & Atmos
(Raised Feed Line)

105

Min Can Height ? SV & UCG
(Raised feed line)

107

Transfer Chain Pitch
Can Centers

4.667?

Filler Drive

1 rev/can

Horsepower/Electrical

25-40 HP

Electrical Controls

24 Volt DC

Gross Weight (approx)

16,500 lbs

Net Weight (approx)

14,400 lbs

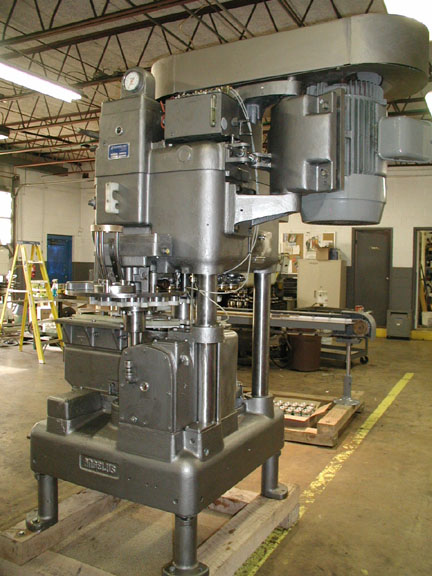

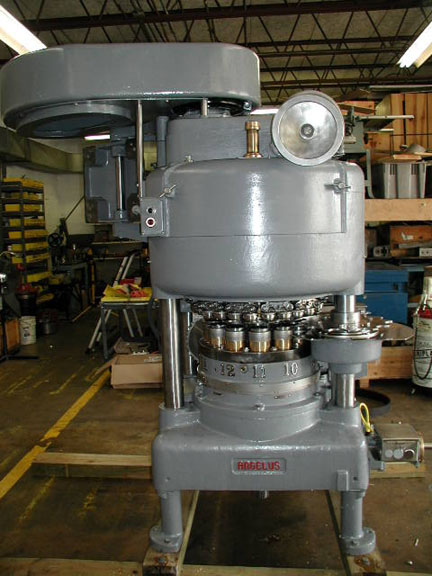

ANGELUS® MODEL 120L (Top)
Technical Specifications

Number of Stations

12

Output Speed Range

400-1200 CPM

Output Speed Range
G16 Gearing

400 ? 1600 CPM

Min/Max Can Diameter
(CM & Atmos)

200-303

Min/Max Can Height
(CM & Atmos)

110-800

Min/Max Can Height
(UCG & SV)

113-800

Min Can Height CM & Atmos
(Raised Feed Line)

105

Min Can Height UCG & SV
(Raised Feed Line)

107

Transfer Chain Pitch
Can Centers

3.750? or 4.000?

Filler Drive

0.5 Rev/Can

Horsepower/Electrical

25-40 HP

Electrical Controls

24 Volt DC

Net Weight (approx)

14,400 lbs





Floor Plan - 120L/121L Cannery


DOUBLE SEAM DEFECTS (Top)
The images located in this section are intended for training. Our full sized double seam defect poster contains all of the images located below as well as common causes and solutions to these problems. If you would like a full sized double seam defect poster courtesy of Shoreline PPM please Contact Us.

Ideal Double Seam

Cover Droop

Cover Vee

Cut Over

Dead Head

False Seam

Knocked Down Flange

Long Body Hook

Long Cover Hook

Loose First Operation Seam

Pleats, Puckers, & Spurs

Seam Bump

Sharp Seam

Short Body Hook

Short Cover Hook

Sprung Seam

Tight First Operation Seam
